Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.
| WISKA-Order no. | 10021310 |
| Type | SW300 -650-X(230)-P02-I01 |
| Material | Stainless steel |
| Colour | RAL 9016 |
| Surface | Powder coated |
| Wattage | 650 W |
| Voltage max. (V) | 230 V |
| Type of Voltage | AC |
| Frequence | 50/60 Hz |
| Protection class | IP56 |
| Operational areas | Outdoor |
| Reflector | Glass |
| Focusing | manuel |
| Lightsource | Halogen lamp |
| Lightsource incl. | No |
| Light performance | immediately |
| Range (1 lux) | 890 m |
| Light intensity mio/cd | 0,8 |
| Divergence | 5,5°I/10 |
| Lampholder | GX 9,5 |
| Number of lampholder | 1 ST |
| Temp. range min | -25 °C |
| Temp. range max | 45 °C |
| Type of cable gland | ESKVS 20 |
| Material cable gland | Polyamide |
| Type of cable | non-armoured |
| Power cable | H07RN-F 3x1,5mm² |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| Globe colour | Clear |
| Mounting | Upside |
| Weight | 17 kg |
| Tariff number | 94054910 |

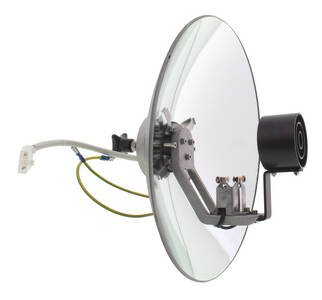

| Remarks: SW300: Searchlight for halogen lamp 230V, IP56 glass parabolic mirror 300mm 650W Voltage: 230V P02: Deck, aluminium I01: manuel,stepless focusing Equipment: - Toughened front glass - Rubber sealing - Quick fastening devices - Connection cable 3m - Anti dazzle screen |
|
EU-Declaration of Conformity SW series E
