Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.
| WISKA-Order no. | 10100903 |
| Type | HML-ISO 35-5-C-W-F00-A01 |
| Material | Polyamide, fibre reinforced |
| Material globe/diffuser | Polycarbonate |
| Colour | Black |
| Wattage | 30 W |
| Voltage min. (V) | 12 V |
| Voltage max. (V) | 24 V |
| Type of Voltage | DC |
| Protection class | IP56 |
| Operational areas | Emergency, Outdoor |
| Temp. range min | -25 °C |
| Temp. range max | 55 °C |
| Lightsource | Halogen lamp |
| Reflector | Glass |
| Lightsource incl. | Yes |
| Bulb shape | reflector |
| Average lamp durability | 50 h |
| Globe colour | Clear |
| Light performance | immediately |
| Lampholder | GY6,35 |
| Number of lampholder | 1 ST |
| Material cable gland | Polyamide |
| Power cable | H07RN-F 2x1,5mm² |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 13 mm |
| External dimensions LxWxH | 160 x 244 x 215 mm |
| Approval | DNV-GL |
| Weight | 12,3 kg |

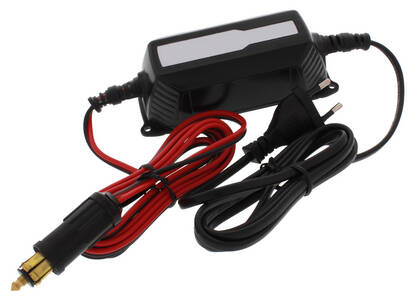

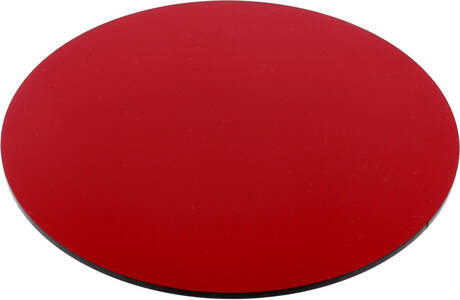

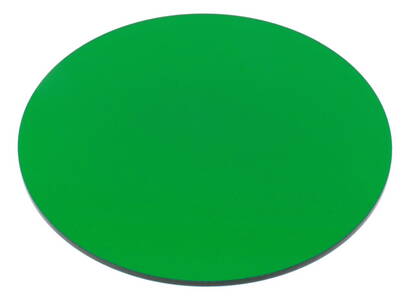

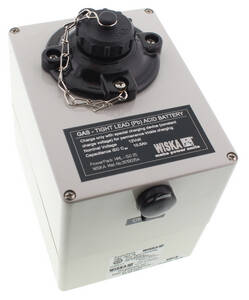

| Equipment | without filter, incl. PowerPack + Charger |
| Advice | Case |
| Tariff number | 94054910 |

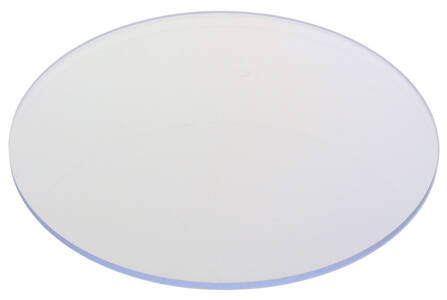

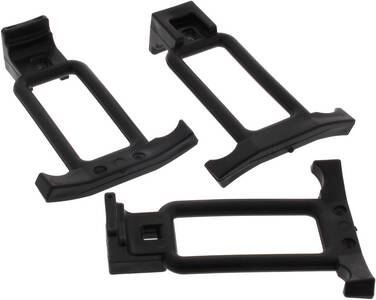

| Remarks: - Signal range visibility: 4.800m during the day, 21.400m at night Equipment: - Toughened front glass - Rubber sealing - Quick fastening rubber - Sighting device - Micro switch for left- and right hander - mounted halogen lamp + 3 spare lamps - Connection cable 5m - SOS function - Permanent light function - Cargo and storage in watertight, IP 67 (1m; 30min) crushproof and dust proof case - This device is built at least according to requirements of ABS, BV, DNV, GL, LR, PRS |
|
DNV-Module_B-HML-ISO_C-EN
