Products may differ in size, colour and appearance to those shown. If you require further information or customisation, please contact us directly.
| WISKA-Order no. | 10112850 |
| Type | 4000-1x13-230-2-CG-LE |
| Material | Polycarbonate |
| Globe colour | Clear |
| Wattage | 13 W |
| Power^ | 1 x 13 W |
| Voltage | 230 V |
| Protection class | IP66 / IP67 |
| Type of Voltage | AC |
| Frequence | 50/60 Hz |
| Connection | Connection box 607 |
| Operational areas | Outdoor, Engine room |
| Temp. range min | -30 °C |
| Temp. range max | 55 °C |
| Lightsource | LED |
| Lightsource incl. | Yes |
| Colour temperature | 5600 K |
| Luminous flux | 1400 lm |
| Colour rendering index | CRI > 80 |
| Ø cable diameter min | 9 mm |
| Ø cable diameter max | 17 mm |
| Rated Lifetime | L70/B50 @Ta +35 °C |
| System Lifetime | 100000 h |
| Mounting | Ceiling, Wall, Surface mounting |
| Colour | RAL 7035 |
| Approval | RMRS, DNV-GL |
| Weight | 0,61 kg |

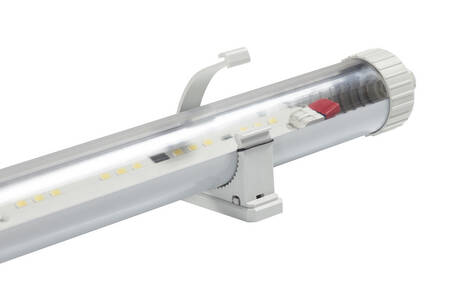

| Remarks: - LED strip - Connection box COMBI 607 - 3 cable glands ESKV 25 included (2 mounted, 1 loose enclosed) - Breathing via VentPLUG mounted in end cap - Mounting via 2 clamps |
|
DNV_4000_C-EN
